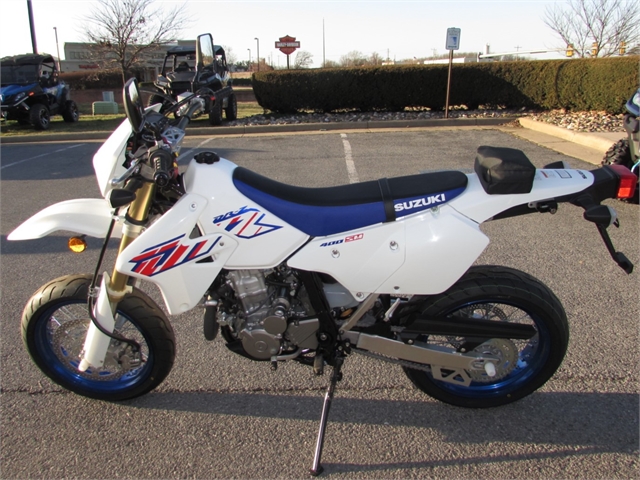

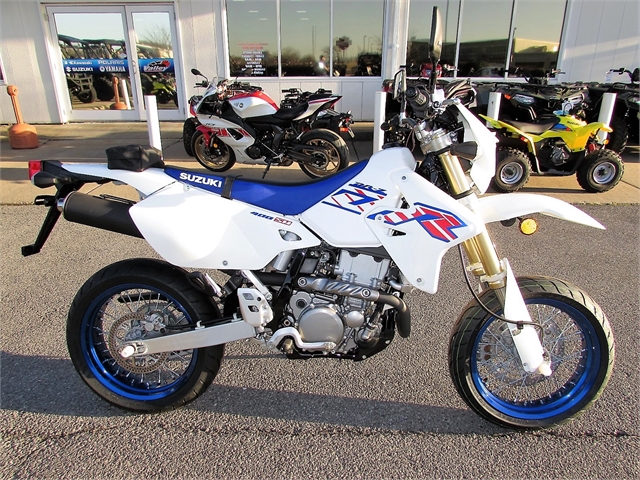

2023 Suzuki DR-Z400SM

Stock #101232
MSRP: $7,799 USD
Pricing Notes: Does not include the following - Freight and Manufacturer Surcharge: $590 | Preparation and Assembly: $267 | Dealer Processing Fee: $225

466 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Suzuki DR-Z 400SM Base . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Suzuki DR-Z400SM
  • VIN:
    JS1SK44A8P7101232
  • Model Number:
    DR-Z400SMM3
  • Color:
    Solid Special White No 2
  • Stock Number:
    101232
  • Title:
    Clear
  • Location:
    Valley Cycle Center
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    9.5
  • Rear Brake Diameter (mm):
    240
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.54
  • Bore (mm):
    90
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    36
  • Carburetor:
    Yes
  • Compression Ratio:
    11.3
  • Cooling:
    Liquid / Air
  • Cylinders:
    1
  • Displacement (cc):
    398
  • Displacement (ci):
    24.3
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric
  • Stroke (in):
    2.44
  • Stroke (mm):
    62.6
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Body Material:
    Plastic
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Aluminum / Steel
  • Heel Guards:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    35
  • Seat Height (mm):
    890
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Tail Bag Material:
    Vinyl
  • Tail Bag Trim:
    Plain

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    Showa®
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    10.2
  • Front Travel (mm):
    260
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    10.9
  • Rear Travel (mm):
    276

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    2.6
  • Fuel Capacity (l):
    10
  • Fuel Capacity Reserve (gal):
    0.6
  • Fuel Capacity Reserve (l):
    2.3
  • Ground Clearance (in):
    10.2
  • Ground Clearance (mm):
    260
  • Height (in):
    47.2
  • Height (mm):
    1200
  • Length (ft):
    7.3
  • Length (ft/ft):
    7
  • Length (ft/in):
    3.6
  • Length (in):
    87.6
  • Length (mm):
    2225
  • Turning Radius (ft):
    8.5
  • Wet Weight (kg):
    146
  • Wet Weight (lbs):
    321
  • Wheelbase (in):
    57.5
  • Wheelbase (mm):
    1460
  • Width (in):
    33.7
  • Width (mm):
    855

TRANSMISSION

  • Final Drive Ratio:
    2.733
  • Gear Ratio (1):
    2.285
  • Gear Ratio (2):
    1.733
  • Gear Ratio (3):
    1.375
  • Gear Ratio (4):
    1.09
  • Gear Ratio (5):
    0.863
  • Number Of Speeds:
    5
  • Overdrive:
    Yes
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® 120/70 R17 M/C 58H
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    120
  • Front Wheel Diameter:
    17
  • Front Wheel Width (in):
    3.5
  • Rear Tire (Full Spec):
    Dunlop® 140/70 R17 M/C 66H
  • Rear Tire Aspect Ratio:
    70
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    140
  • Rear Wheel Diameter:
    17
  • Rear Wheel Width (in):
    4.5
  • Tire Brand:
    Dunlop®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
