2023 Yamaha Wolverine RMAX4 1000 XT-R

New Arrival! Pictures Coming Soon!

Stock #109655
MSRP: $29,199 USD
Pricing Notes: Does not include the following - Freight and Manufacturer Surcharge: $1450 | Preparation and Assembly: $585 | Dealer Processing Fee: $225

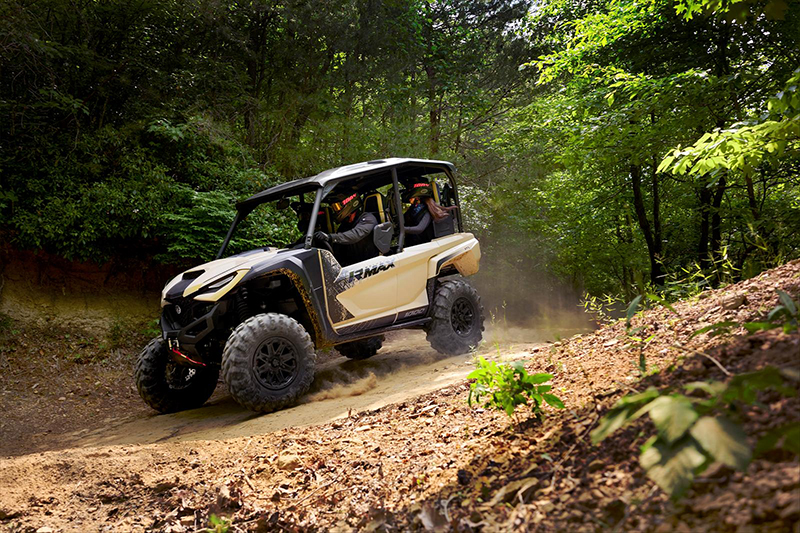

Stock Photos - Actual Images Coming Soon
Check Availability Hi, my name is and I'm interested in this 2023 Yamaha Wolverine RMAX4 1000 XT-R - New Arrival! Pictures Coming Soon! . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Yamaha Wolverine RMAX4 1000 XT-R
  • VIN:
    5Y4AN39Y6PA109655
  • Model Number:
    YXF10WRZPB
  • Color:
    Desert Tan / Tactical Black
  • Stock Number:
    109655
  • Title:
    Clear
  • Location:
    Valley Cycle Center
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Number Of Speakers:
    2

BRAKES

  • Front Brake Diameter (in):
    10
  • Front Brake Diameter (mm):
    255
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    9.6
  • Rear Brake Diameter (mm):
    244.5
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Command™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.66
  • Bore (mm):
    93
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    11.2
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    48
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.89
  • Stroke (mm):
    73.5
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • CV Boot Cover:
    Yes
  • Exhaust Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    4
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    272.2
  • Bed Capacity (lbs.):
    600
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Adjustment Type:
    Spring Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Brand Name:
    Fox®
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    14.2
  • Front Travel (mm):
    360.7
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox®
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    13.3
  • Rear Travel (mm):
    337.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.49
  • Fuel Capacity (gal):
    9.2
  • Fuel Capacity (l):
    34.8
  • Ground Clearance (in):
    13.4
  • Ground Clearance (mm):
    340.4
  • Height (in):
    83.1
  • Height (mm):
    2110.7
  • Length (ft):
    10.68
  • Length (ft/ft):
    10
  • Length (ft/in):
    8.1
  • Length (in):
    128.1
  • Length (mm):
    3253.7
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    19.7
  • Wet Weight (kg):
    929.9
  • Wet Weight (lbs):
    2050
  • Wheelbase (in):
    90.2
  • Wheelbase (mm):
    2291.1
  • Width (in):
    66
  • Width (mm):
    1676.4

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Warn®

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® Carnage™ 29 X 9.00R-14
  • Front Tire Diameter (in):
    29
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Maxxis® Carnage™ 29 X 11.00R-14
  • Rear Tire Diameter (in):
    29
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Maxxis®
  • Tread Type:
    All Terrain
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
