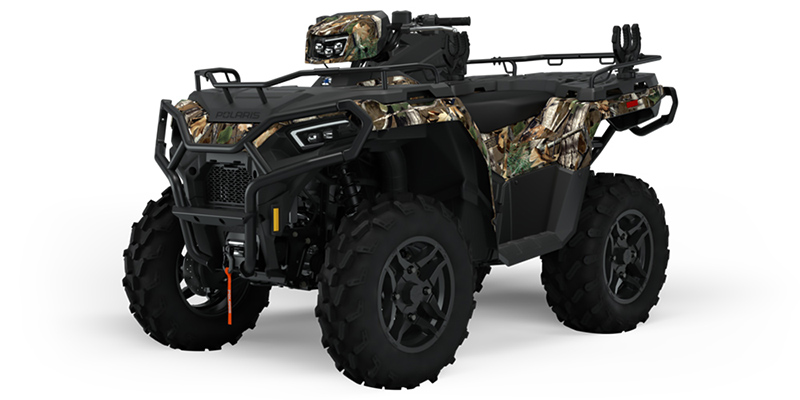

2024 Polaris Sportsman 570 Hunt Edition

Stock #134670
MSRP: $11,699 USD
Pricing Notes: Does not include the following - Freight and Manufacturer Surcharge: $745 | Preparation and Assembly: $267 | Dealer Processing Fee: $225
Stock Photos - Actual Images Coming Soon

118 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Polaris Sportsman 570 Hunt Edition . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2024 Polaris Sportsman 570 Hunt Edition
  • VIN:
    4XASHD574RA134670
  • Model Number:
    A24SHD57A9
  • Color:
    CAMO
  • Stock Number:
    134670
  • Title:
    Clear
  • Location:
    Valley Cycle Center
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Heated Hand Grip Location:
    Driver

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Rear
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.9
  • Bore (mm):
    99
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    567
  • Displacement (ci):
    34.6
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    44
  • Horsepower (kW):
    32.8
  • Starter:
    Electric
  • Stroke (in):
    2.9
  • Stroke (mm):
    73.6
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Composite
  • Brush Guard:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.3
  • Seat Height (mm):
    845
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    40.8
  • Capacity (kgs):
    81.6
  • Capacity (lbs):
    180
  • Capacity (lbs):
    90
  • Rack Rails Location:
    Front and Rear

SUSPENSION

  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    8.9
  • Front Travel (mm):
    226
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    9.5
  • Rear Travel (mm):
    241

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    392.8
  • Dry Weight (lbs):
    866
  • Engine Displacement to Weight (cc):
    0.65
  • Fuel Capacity (gal):
    4.5
  • Fuel Capacity (l):
    17
  • Ground Clearance (in):
    11.5
  • Ground Clearance (mm):
    290
  • Height (in):
    47
  • Height (mm):
    1194
  • Length (ft):
    6.92
  • Length (ft/ft):
    6
  • Length (ft/in):
    11
  • Length (in):
    83
  • Length (mm):
    2108
  • Payload Capacity (kgs):
    220
  • Payload Capacity (lbs):
    485
  • Towing Capacity (kgs):
    612
  • Towing Capacity (lbs):
    1350
  • Wheelbase (in):
    50.5
  • Wheelbase (mm):
    1283
  • Width (in):
    48
  • Width (mm):
    1219

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    3.2
  • Size (in):
    1.25
  • Weight (kgs):
    1134
  • Weight (lbs):
    2500
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Polaris PXT
  • Front Tire Diameter (in):
    26
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Polaris PXT
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Polaris PXT
  • Wheels Composition:
    Aluminum
